Thermic Oil Radiator

Heat Transfer Equipments Pvt. Ltd. is a Thermic Oil Radiator manufacturer in India, providing customized heating equipment for industrial and process heating requirements. Our thermic oil radiators are available in vertical and horizontal configurations and can be designed according to the required heating arrangement, fuel type, operating conditions, and installation requirements.

​What Is a Thermic Oil Radiator?

A thermic oil radiator is an industrial heating equipment used to transfer heat through thermal oil for process heating applications. The system uses heated thermal oil as the heat transfer medium, allowing heat to be supplied to the required process or equipment without direct contact between the heating source and the process fluid.

The radiator configuration can be selected based on the required heating duty, installation space, thermal oil circulation, fuel arrangement, and operating conditions.

How Does It Work?

The working principle is based on the circulation of heated thermal oil through the radiator system.

Thermal oil is heated using a suitable heating source and circulated through the radiator. Heat is transferred from the hot thermal oil to the required process or surrounding medium through the radiator surface.

The heating performance depends on factors such as heat duty, thermal oil flow rate, operating temperature, radiator surface area, fuel type, and process requirements.

Proper design helps provide consistent heat transfer according to the application’s heating requirements.

Design and Construction

Thermic oil radiators are designed and manufactured according to the required thermal and mechanical conditions.

Typical construction can include:

• Heat transfer tubes or heating surfaces
• Headers or manifolds
• Inlet and outlet connections
• Supporting arrangements
• Structural frame where required
• Thermal oil circulation connections
• Mounting arrangements

The size, orientation, tube arrangement, heating surface, materials, and connections can be customized according to the application.

Both vertical and horizontal thermic oil radiator configurations can be provided depending on available space and installation requirements.

Types of Radiators

Different configurations can be selected depending on the heating requirement and available installation arrangement.

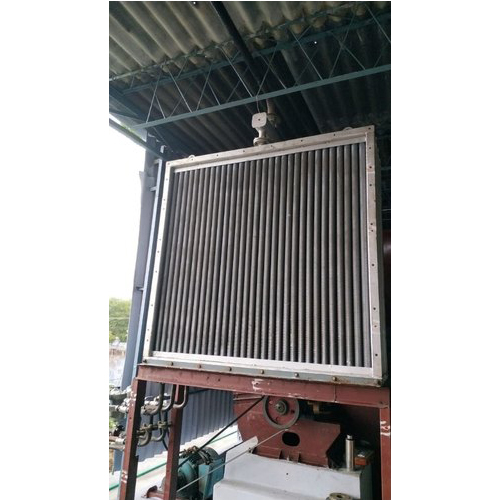

Vertical Thermic Oil Radiator

Vertical configurations are suitable for installations where floor space is limited or where a vertical arrangement is preferred. The dimensions and heating surface can be selected according to the required application.

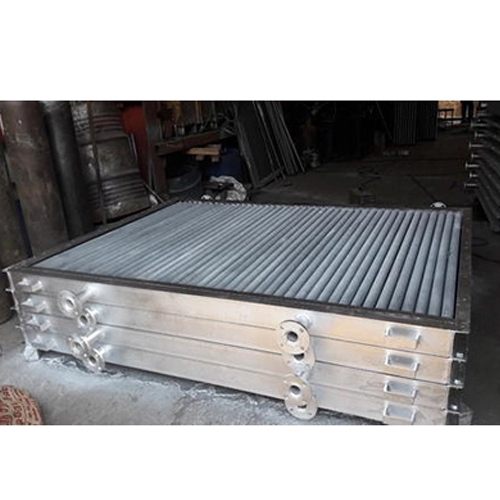

Horizontal Thermic Oil Radiator

Horizontal configurations can be used where the installation layout allows a horizontal arrangement. They can be customized according to the required heating capacity, space, and connection arrangement.

Customized Radiator Configurations

Application-specific radiator designs can be developed when the project requires particular dimensions, heating surface, fuel arrangement, connection sizes, or installation conditions.

Fuel Options

Thermic oil heating systems can be configured according to the available fuel and project requirements.

Depending on the application, heating arrangements can be designed for:

• Oil-fired systems
• Gas-fired systems
• Wood-fired systems

The suitable fuel arrangement depends on the required heating duty, fuel availability, operating conditions, and overall system configuration.

Advantages of Thermic Oil Radiator

Thermic oil radiators can offer several benefits for suitable industrial heating applications:

• Indirect heating using thermal oil
• Suitable for continuous industrial heating requirements
• Vertical and horizontal configurations available
• Flexible heating surface arrangements
• Different fuel options can be considered
• Compact configurations for suitable installations
• Customized construction based on process requirements
• Thermal oil provides an indirect heat transfer medium
• Suitable for various process heating applications
• Design can be adapted to available installation space

Actual performance depends on the radiator design, thermal oil properties, heat duty, fuel arrangement, and operating conditions.

Applications of Thermic Oil Radiator

Thermic oil radiators can be used in industrial processes where controlled and indirect heating is required.

Typical applications can include:

• Process heating systems
• Industrial heating equipment
• Chemical processing
• Food processing
• Textile processing
• Pharmaceutical applications
• Oil and chemical processing
• General manufacturing industries
• Heat transfer oil circulation systems
• Industrial thermal heating systems

The appropriate radiator configuration depends on the required heat duty, thermal oil temperature, process requirements, fuel type, and installation conditions.

Design Considerations

Proper design is important for achieving the required heating performance and reliable operation.

Important design considerations include:

• Required heat duty
• Thermal oil type and properties
• Thermal oil flow rate
• Required inlet and outlet temperatures
• Operating pressure
• Heating surface area
• Fuel type
• Available installation space
• Material compatibility
• Connection requirements
• Maintenance access
• Operating and service conditions

The final design is developed according to the actual process conditions and customer specifications.

Customized Solutions

Heat Transfer Equipments Pvt. Ltd. provides customized thermic oil radiator solutions based on specific industrial heating requirements.

Our engineering approach considers the required heat duty, thermal oil circulation, operating temperature, fuel type, radiator orientation, available space, material requirements, connections, and maintenance requirements.

The equipment can be developed according to project-specific thermal and mechanical requirements.

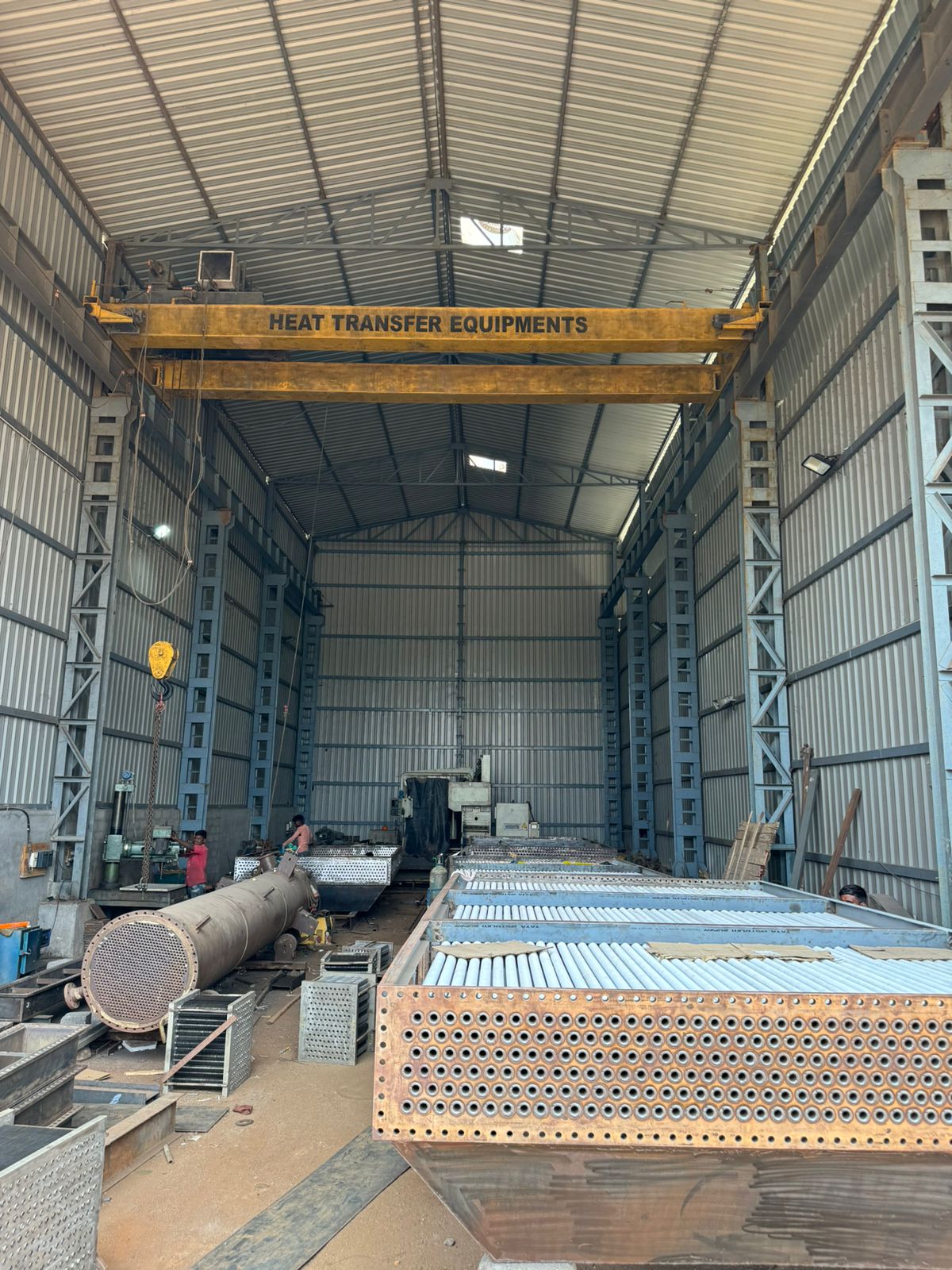

Manufacturing and Quality

Heat Transfer Equipments Pvt. Ltd. focuses on manufacturing thermic oil radiators according to application requirements, material specifications, dimensional requirements, and project standards.

Application-Based Engineering

Each radiator configuration is developed according to the required heating duty, thermal oil conditions, fuel arrangement, and installation requirements.

Material Selection

Materials are selected according to operating temperature, thermal oil compatibility, corrosion conditions, and expected service requirements.

Customized Fabrication

Radiator dimensions, heating surfaces, connections, supports, orientation, and mounting arrangements can be customized according to project requirements.

Inspection and Testing

Manufacturing and inspection activities can be carried out according to applicable project specifications and quality requirements.

Technical Support

Our team can assist with equipment selection and configuration based on the customer’s heating requirements and installation conditions.

Frequently Asked Questions

What Fuel Options Are Available for Thermic Oil Radiators?

Thermic oil radiators can be configured for different fuel options based on the heating system and project requirements. Depending on the application, oil, gas, and wood-fired heating arrangements can be considered. The suitable fuel option is selected based on heat duty, fuel availability, operating conditions, and system configuration.

Are Vertical and Horizontal Models Available?

Yes. Thermic oil radiators can be designed in vertical and horizontal configurations according to the available installation space and application requirements.

Can Thermic Oil Radiators Be Customized?

Yes. Heating surface, dimensions, orientation, connections, materials, and other configuration details can be customized according to specific project requirements.

What Factors Should Be Considered When Selecting a Thermic Oil Radiator?

Important factors include required heat duty, thermal oil type, flow rate, operating temperature, fuel type, installation space, material requirements, and connection arrangements.

What Information Is Required for Thermic Oil Radiator Selection?

Details such as heat duty, thermal oil specifications, required inlet and outlet temperatures, flow rate, fuel type, operating conditions, and available installation space help determine the suitable configuration.

Do You Manufacture Thermic Oil Radiators in India?

Yes. Heat Transfer Equipments Pvt. Ltd. manufactures customized thermic oil radiators in India based on application, thermal, mechanical, and installation requirements.

Request a Quote

Looking for a reliable Thermic Oil Radiator manufacturer in India?

Share your required heat duty, thermal oil details, inlet and outlet temperatures, fuel type, preferred vertical or horizontal arrangement, operating conditions, and installation requirements with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized thermic oil radiator solution based on your process and heating requirements.
