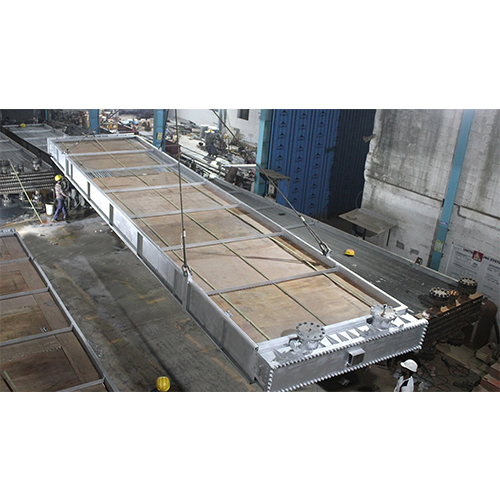

Air Fin Cooler

Heat Transfer Equipments Pvt. Ltd. is an Air Fin Cooler manufacturer in India, providing customized air-cooled heat transfer solutions for industrial process cooling applications.

Air Fin Coolers use atmospheric air to remove heat from process fluids without requiring a continuous supply of cooling water. The equipment can be designed according to heat duty, fluid properties, operating temperature, pressure, airflow requirements, and available installation space.

What Is an Air Fin Cooler?

An Air Fin Cooler is a heat transfer equipment used to cool process fluids by transferring heat from the fluid to surrounding air through finned tubes.

The hot process fluid flows through the tubes while ambient air passes over the finned tube surface. The fins increase the effective heat transfer area, allowing heat to dissipate into the atmosphere.

Air Fin Coolers can be used where water consumption needs to be reduced or where air cooling is more suitable for the process.

How Does an Air Fin Cooler Work?

The cooling process begins when the hot process fluid enters the tube-side circuit of the cooler.

Ambient air flows across the external finned surface of the tubes. Heat moves from the process fluid through the tube wall and fins before being released into the surrounding air.

Depending on the required cooling capacity, airflow can be provided naturally or with mechanical fans.

The required performance depends on process flow rate, inlet and outlet temperatures, ambient conditions, tube and fin configuration, heat transfer area, airflow, and allowable pressure drop.

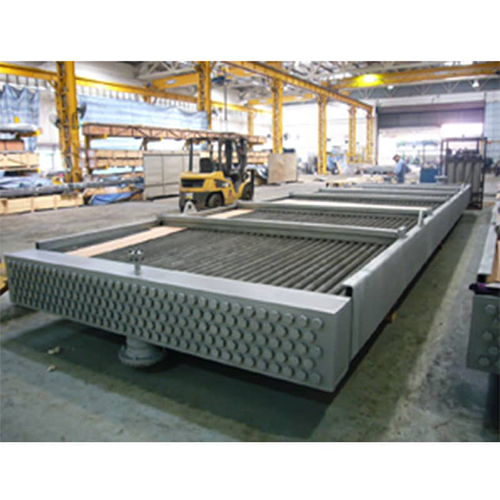

Air Fin Cooler Construction

Air Fin Coolers are constructed using tube-and-fin assemblies designed for efficient air-side heat transfer.

Typical construction can include:

• Heat transfer tubes
• Finned tube bundles
• Headers or manifolds
• Inlet and outlet connections
• Supporting structures
• Fan and drive assembly where applicable
• Protective guards
• Mounting arrangements

Tube diameter, tube length, fin spacing, bundle dimensions, header arrangement, and materials can be selected according to the application requirements.

Types of Headers and Fins

Header and fin selection plays an important role in the performance, maintenance, and serviceability of an Air Fin Cooler.

Header Configurations

Depending on the application, Air Fin Coolers can be designed with different header arrangements, including:

• Welded bonnet headers
• Plug headers
• Manifold headers

The suitable header configuration depends on operating pressure, fluid characteristics, maintenance requirements, tube arrangement, and project specifications.

Fin Types

Different fin constructions can be considered according to the required heat transfer performance and operating environment.

Options can include:

• L-type fins
• G-type fins
• Bi-metallic extruded fins
• Other application-specific fin arrangements

Fin material, height, thickness, spacing, and tube-fin bonding can be selected according to thermal performance and environmental conditions.

Air Fin Cooler Design Considerations

Proper design is important to achieve the required cooling performance while maintaining suitable process and airflow conditions.

Important parameters include:

• Required heat duty
• Process fluid type
• Fluid flow rate
• Fluid inlet and outlet temperatures
• Operating and design pressure
• Operating and design temperature
• Ambient air temperature
• Tube material
• Fin material and configuration
• Heat transfer area
• Airflow requirement
• Allowable pressure drop
• Fouling and corrosion conditions
• Available installation space
• Maintenance requirements

The final design is selected based on actual process conditions and customer specifications.

Benefits of Air Fin Coolers

Air Fin Coolers can provide several advantages for suitable industrial cooling applications:

• Reduces dependence on cooling water
• Suitable for water-scarce locations
• No direct contact between cooling air and process fluid
• Suitable for continuous industrial cooling
• Flexible tube and fin configurations
• Can be customized for different process duties
• Suitable for high-temperature process cooling applications
• Practical solution where water cooling is not preferred

The actual performance and benefits depend on the process conditions and selected equipment configuration.

Industrial Applications

Air Fin Coolers are used in various industries where process fluids require controlled cooling.

Typical applications include:

• Oil and gas processing
• Petroleum refineries
• Petrochemical plants
• Chemical processing
• Natural gas processing
• Power generation
• Compressor cooling systems
• Hydraulic oil cooling
• Lube oil cooling
• Industrial process cooling
• Gas and liquid cooling systems

The appropriate configuration depends on the process fluid, cooling duty, operating conditions, ambient temperature, and installation requirements.

Customized Air Fin Cooler Manufacturing

Heat Transfer Equipments Pvt. Ltd. provides customized Air Fin Cooler solutions based on specific process requirements.

Our engineering approach considers thermal duty, fluid properties, operating pressure and temperature, ambient conditions, tube and fin materials, header configuration, airflow requirements, installation space, and maintenance requirements.

Manufacturing can include engineering, material selection, tube and fin assembly, header fabrication, welding, inspection, testing, surface preparation, and delivery according to project requirements.

Why Choose Heat Transfer Equipments Pvt. Ltd.?

Heat Transfer Equipments Pvt. Ltd. is an ISO 9001:2015 certified and ASME U Stamp Certified manufacturer of heat transfer equipment, serving industrial customers in India and international markets.

For Air Fin Cooler projects, our focus includes:

• Application-specific engineering
• Customized thermal and mechanical design
• ASME U Stamp certified manufacturing
• Suitable tube and fin material selection
• Customized header configurations
• Controlled fabrication and assembly
• Project-specific inspection and testing
• Equipment designed according to operating conditions
• Domestic and export project support
• Technical assistance based on customer requirements

Frequently Asked Questions

What is an Air Fin Cooler used for?

An Air Fin Cooler is used to remove heat from process fluids by transferring heat to ambient air through finned tubes. It is commonly used for industrial process cooling applications.

Can an Air Fin Cooler be customized?

Yes. Tube dimensions, fin configuration, header arrangement, heat transfer area, materials, airflow, connections, and overall dimensions can be customized according to the application.

What information is required for Air Fin Cooler selection?

Important details include process fluid, flow rate, inlet and outlet temperatures, heat duty, operating pressure, ambient temperature, allowable pressure drop, material requirements, and available installation space.

What types of headers are available for Air Fin Coolers?

Depending on the application, header arrangements can include welded bonnet headers, plug headers, and manifold headers. The suitable configuration depends on pressure, fluid characteristics, maintenance requirements, and project specifications.

What fin types can be used in an Air Fin Cooler?

L-type fins, G-type fins, bi-metallic extruded fins, and other suitable fin configurations can be considered based on thermal requirements, material compatibility, and operating environment.

Do you manufacture customized Air Fin Coolers in India?

Yes. Heat Transfer Equipments Pvt. Ltd. manufactures customized Air Fin Coolers in India according to thermal, mechanical, material, dimensional, and project-specific requirements.

Request a Quote for an Air Fin Cooler

Looking for a reliable Air Fin Cooler manufacturer in India?

Share your process fluid, flow rate, heat duty, inlet and outlet temperatures, operating pressure, ambient conditions, material requirements, and installation details with our engineering team.

Heat Transfer Equipments Pvt. Ltd. can provide a customized Air Fin Cooler solution based on your process and equipment requirements.
